Earthmate BENTOSEAL™ Geosynthetics clay liners (GCLs)

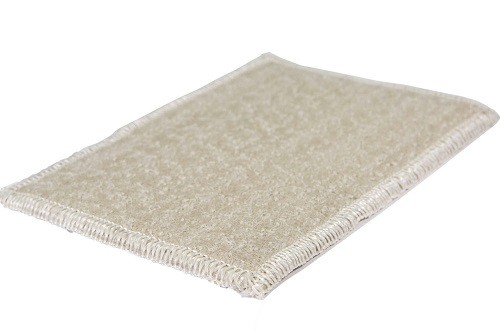

Earthmate BENTOSEAL™ Geosynthetics clay liners (GCLs) are factory manufactured hydraulic barriers consisting of a layer of bentonite or other very low-permeability material supported by geotextiles and or geomembranes, mechanically held together by needling, stitching, or chemical adhesives. Due to environmental laws, any seepage from landfills must be collected and properly disposed off, otherwise contamination of the surrounding ground water could cause major environmental and or ecological problems. The lower the hydraulic conductivity the more effective the GCL will be at retaining seepage inside of the landfill. Bentonite composed predominantly (>70%) of montmorillonite or other expansive clays, are preferred and most commonly used in GCLs. A general GCL construction would consist of two layers of geosynthetics stitched together enclosing a layer of natural or processed sodium bentonite. Typically, woven and or non-woven textile geosynthetics are used, however polyethylene or geomembrane layers or geogrid geotextiles materials have also been incorporated into the design or in place of a textile layer to increase strength.

Applications

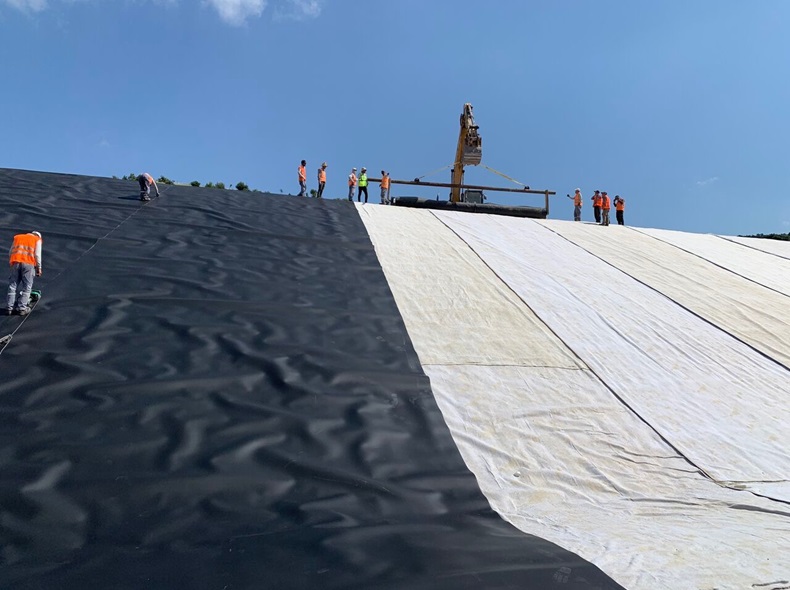

  • Waste and contaminated soil caps

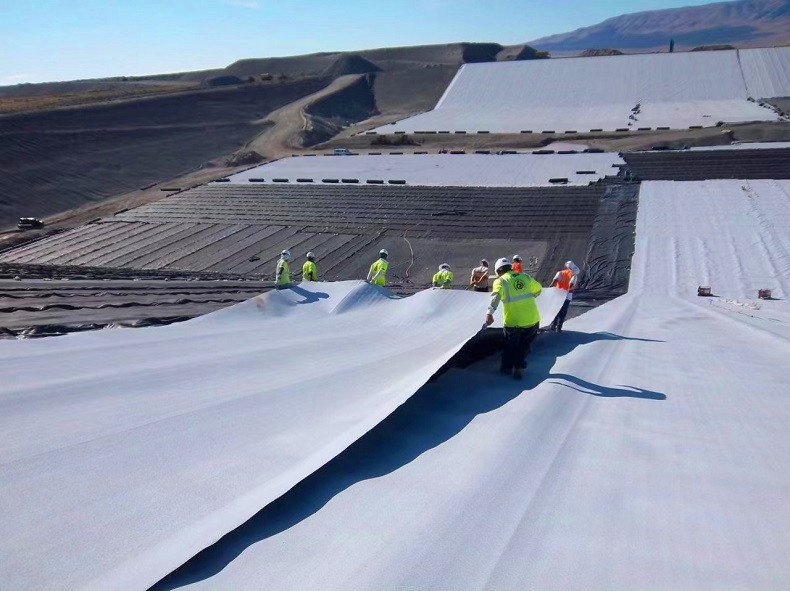

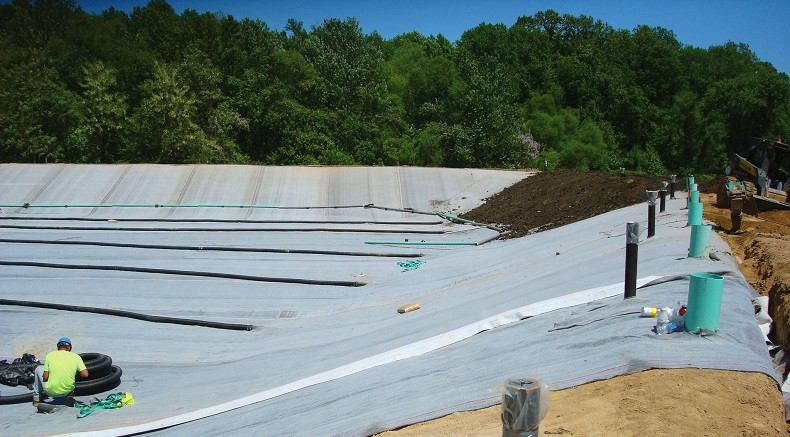

  • Landfill base liners
  • Gas and vapour seals
  • Surface impoundment liners
  • Secondary containment
  • Dams, canals, and water courses
  • Tailings containment
  • Groundwater protection
  • Waterproofing

Benefits
  • Excellent sealing effect
  • Low formation of dust owing to the use of granulated material
  • Low sensitivity to subsidence
  • Less sealing material
  • Cost-efficient
  • Durable due to the high chemical resistance
  • Quick and easy to install
