WELCOME TO EARTHMATE

ENGINEERING WITH EARTHMATE GEOSYNTHETICS FOR A BRIGHT FUTURE

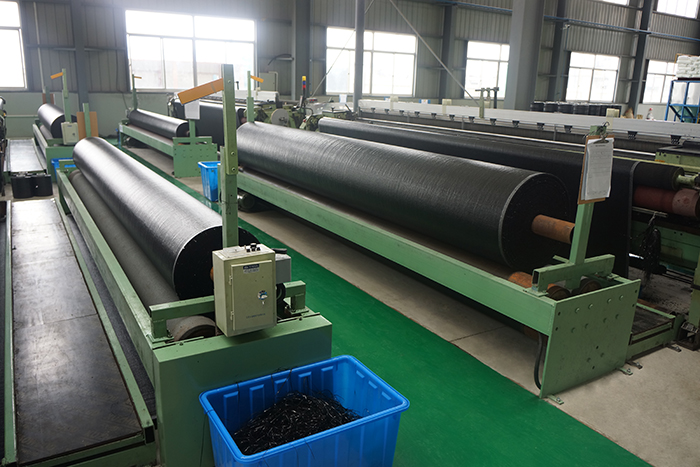

Earthmate® Geosynthetic has been established to provide dedicatedly the world class technical solutions in the geosynthetics applications from 2007. Earthmate Geosynthetic owns rich experiences and technical know-how in production of engineering textiles. Now we are producing a complete range of woven geotextiles, composited drainage geomats, geocomposites , geogrid and asphalt reinforcement composited grids based on High Modulus & High Strength Polymers. These geosynthetics are used widely in Reinforcement, Filtration, Drainage, Separation, Sealing, Protection and Erosion Control.

FLEXIBILITY



HIGH TENSILE STRENGTH



EASY INSTALLATION



COST SAVING



GEOSYNTHETICS

WORLD CLASS TECHNICAL SOLUTIONS

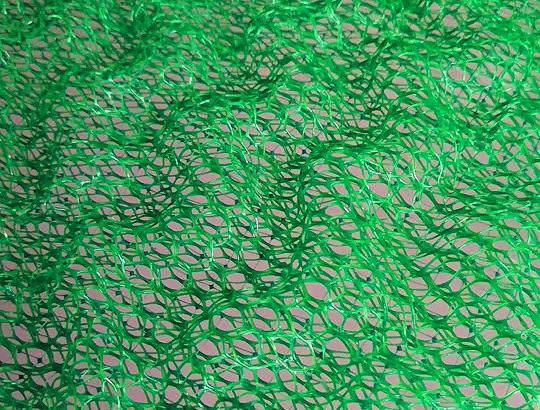

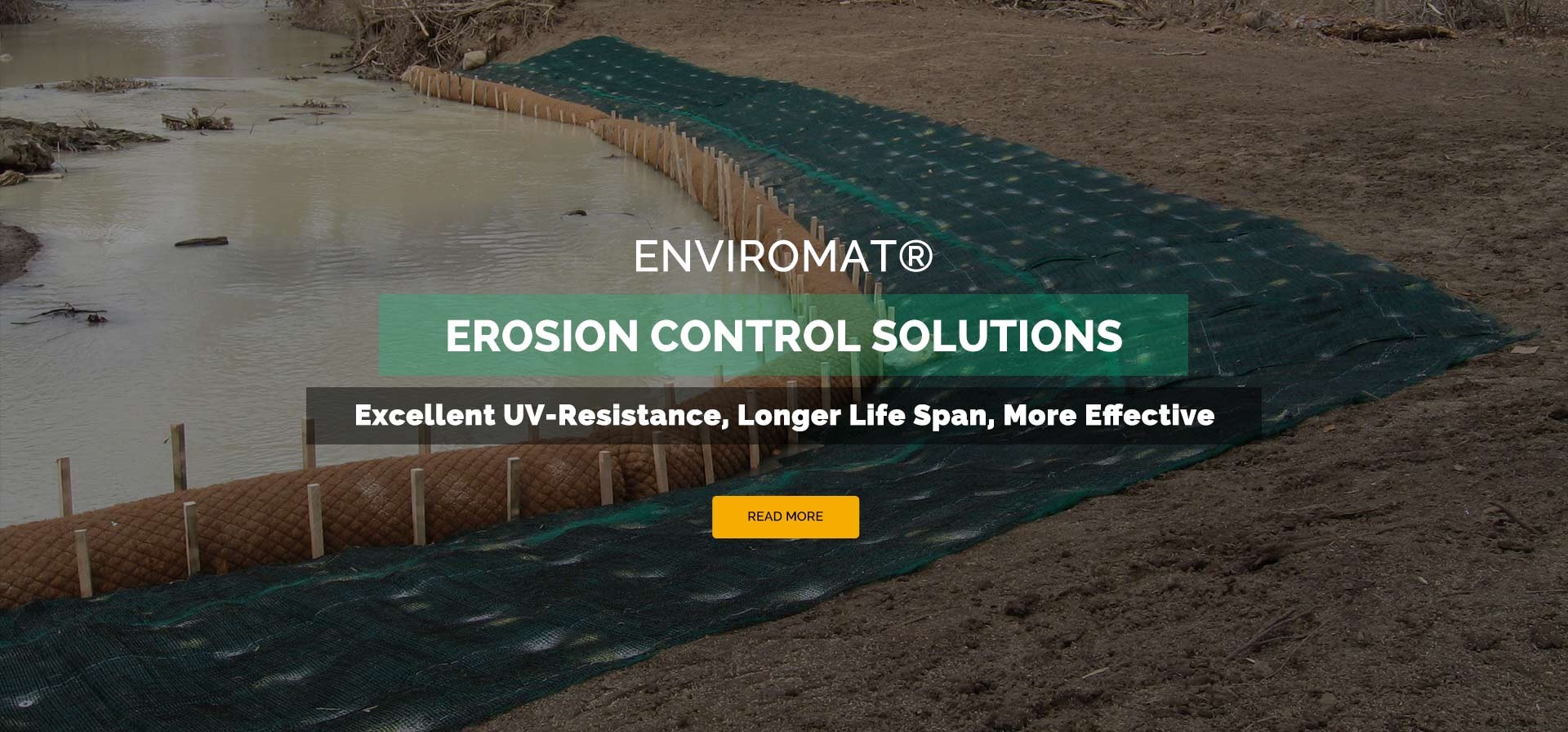

Earthmate ENVIROMAT® 3D Vegetation Erosion Control Geomat

Earthmate ENVIROMAT® 3D Vegetation Erosion Control Mat is a new type civil engineering material which be used broadly in maintenance of water and soil, can offer seeds and soil which have been put into them protection, increase the green area and improve the environment. Earthmate ENVIROMAT® 3D Vegetation Erosion Control Mat is designed to initially stabilize the surface whilst assisting vegetation to establish. It then goes on to provide long-term, tenacious reinforcement of the root system. Reinforced grass slopes have been shown to have an erosion resistance able to withstand current velocities in excess of 4m sec.

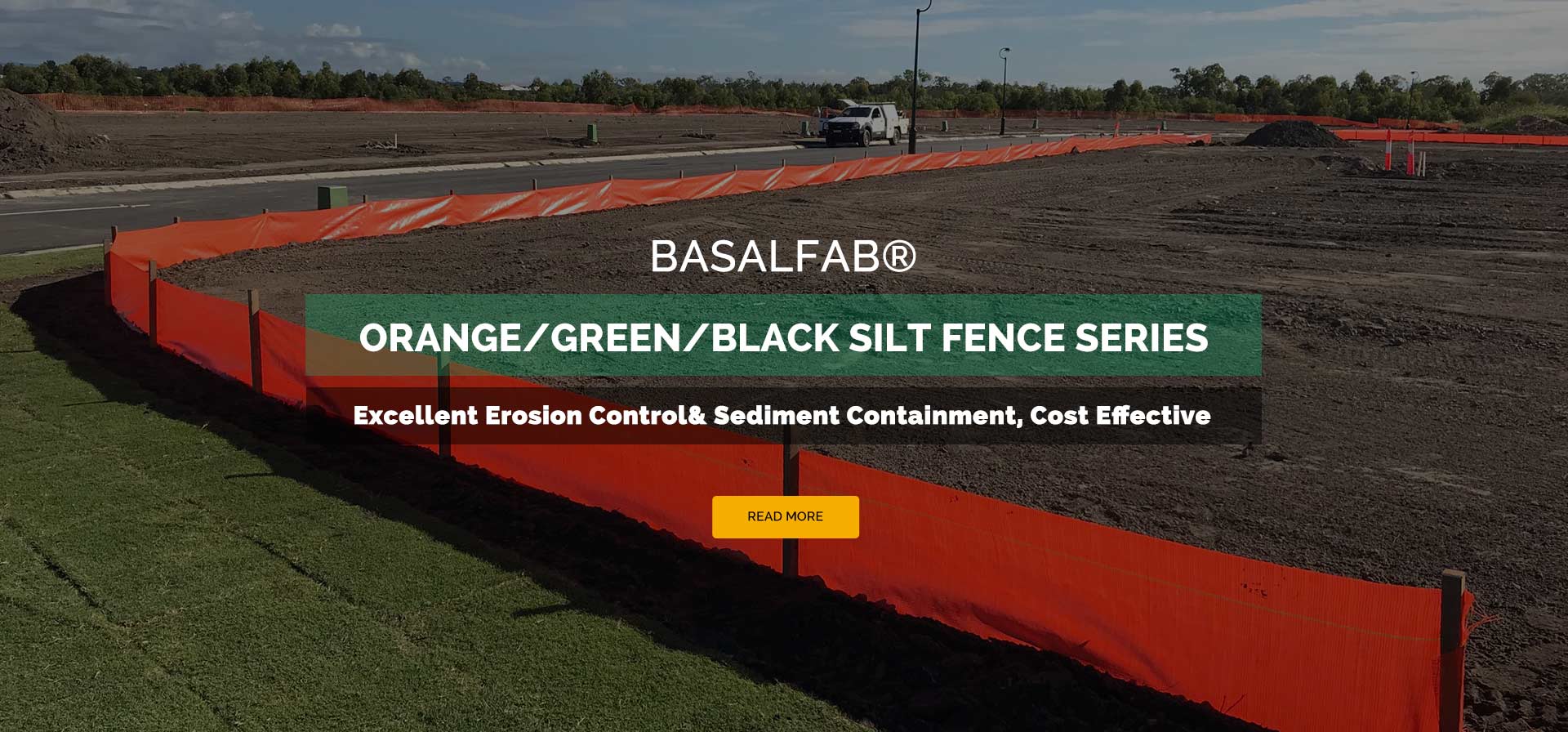

Earthmate BASALFAB® Hi-Vis Orange Silt Fence/Safety Fence

Earthmate BASALFAB® Hi-Vis Orange Silt Fence or Safety Fence is a sediment and erosion control device used to protect water quality in nearby streams, rivers, lakes and seas from sediment (loose soil) in storm water runoff. Earthmate BASALFAB® Silt Fence is manufactured with UV stabilized, high tensile polypropylene Hi-Vis Orange silt tapes that are woven to form a dimensionally stable network. Earthmate BASALFAB® Hi-Vis Orange Silt Fence or Safety Fence is widely used on construction sites among the world due to low cost, easy installation and long life span. Fabric options include 88 grams (Contractor Grade),100 grams (DOT Grade) and 130grams in two different color: Orange and Orange mixed Black. Earthmate BASALFAB® Hi-Vis Orange Silt Fence or Safety Fence is available in 3’x 300’ and 3’x1500’ rolls. Customized and Logo Printing is available. 2 years life span.

Earthmate BENTOSEAL® Geosynthetics clay liners (GCLs)

Earthmate BENTOSEAL® Geosynthetics clay liners (GCLs) are factory manufactured hydraulic barriers consisting of a layer of bentonite or other very low-permeability material supported by geotextiles and or geomembranes, mechanically held together by needling, stitching, or chemical adhesives. Due to environmental laws, any seepage from landfills must be collected and properly disposed off, otherwise contamination of the surrounding ground water could cause major environmental and or ecological problems. The lower the hydraulic conductivity the more effective the GCL will be at retaining seepage inside of the landfill. Bentonite composed predominantly (>70%) of montmorillonite or other expansive clays, are preferred and most commonly used in GCLs. A general GCL construction would consist of two layers of geosynthetics stitched together enclosing a layer of natural or processed sodium bentonite. Typically, woven and or non-woven textile geosynthetics are used, however polyethylene or geomembrane layers or geogrid geotextiles materials have also been incorporated into the design or in place of a textile layer to increase strength.

Earthmate ENVIROMAT® UV Stabilized Ground Cover/Weed Barrier

Earthmate ENVIROMAT® UV Stabilized Ground Cover or Weed Barrier is a PP woven fabric and offers exceptional weed control, eliminating the need for herbicidal or insecticidal sprays. They are UV stabilized for long term exposure to the sun and are available in a selection of weights, colors, widths and lengths.

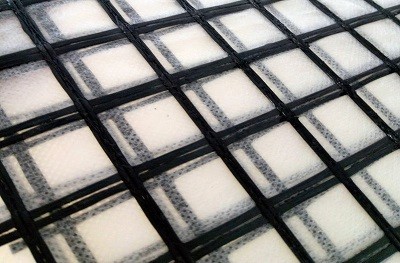

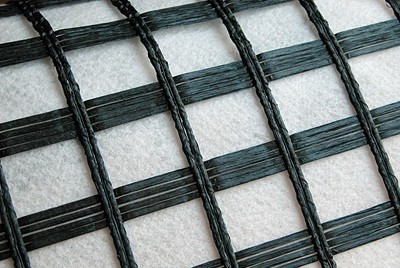

Earthmate WALLSTRAIN® PP Continuous Stable Filament Composited Geotextiles

Earthmate WALLSTRAIN® PP Stable Continuous Filament Composited Geotextiles are produced with high molecular weight, high tenacity, polyester yarns which are knitted on PP Stable Continuous Filament Nonwoven Geotextile. These composited geotextiles are dimensionally stable and through a uniform network of ribs and apertures provide tensile reinforcement to the surrounding soil to provide the long-term design strength (LTDS) required for each specific application. They are also chemically stable and appropriate for using in aggressive soil environments which pH levels from 3.0 to 9.0. Their primary characteristic is excellent creep performance with low strain and high tensile strength under constant load.

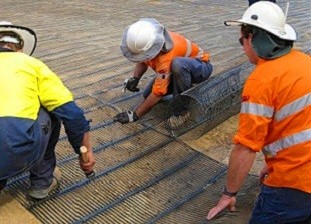

Earthmate MINETRAC® High Modulus Mining Grids

Earthmate MINETRAC® High Modulus Mining Grids are woven from the highest quality and modulus polyester filaments, coated with a flame-retardant additive. The Earthmate MINETRAC® High Modulus Mining Grids offer an expedient and reliable solution to underground mining and tunnel applications which require longwall recovery, highwall, roof and rib support. Earthmate MINETRAC® High Modulus Mining Grids conform to Fire Retardant Anti-Static (FRAS) requirements and fulfill all of the requirements of a supporting element in underground mining.

Earthmate WALLSTRAIN® HDPE Textured Perforated Geocell

Earthmate WALLSTRAIN® HDPE Textured Perforated Geocell is a light weight,flexible three-dimensional and expandable panels which are made from High Density Polyethylene (HDPE) strips.The High Density Polyethylene (HDPE) strips are ultrasonically bonded together to form an extremely strong configuration. It can be used for preventing horizontal movement of the filling materials and enhancing the material’s shear strength as well as bearing capacity significantly.The three-dimensional webs provide considerable weight distribution to support heavy stress without displacement. The Perforated webs also allow for vertical and lateral water drainage for effective drainage and groundwater recharge while avoiding erosion and surface runoff. Vegetation could grow through the Geocell structure rather than other environmentally-harmful possibilities such as pavement or cantilever wall.

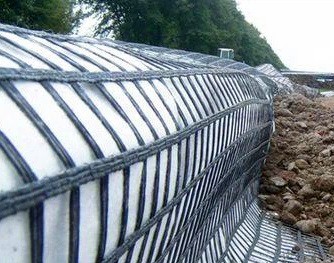

Earthmate WALLSTRAIN® High Modulus Polyester Uni-axial Geogrids

Earthmate WALLSTRAIN® High Modulus Polyester Uni-axial Geogrids are produced with high molecular weight, high tenacity, polyester yarns using a precision knitting process. These geogrids are dimensionally stable and through a uniform network of ribs and apertures provide tensile reinforcement to the surrounding soil to provide the long-term design strength (LTDS) required for each specific application. Earthmate WALLSTRAIN® High Modulus Polyester Uni-axial Geogrids are woven and then coated with a polymer or PVC coating to provide dimensional stability and offer resistance to installation damage. They are also chemically stable and appropriate for using in aggressive soil environments which pH levels from 3.0 to 12.0. Their primary characteristic is excellent creep performance with low strain and high tensile strength under constant load.

Earthmate WALLSTRAIN® HDPE Uni-axial Geogrids

Earthmate WALLSTRAIN® HDPE Uni-axial Geogrids are produced from high density polyethylene (HDPE) resins. The HDPE Uni-axial Geogrids are resistant to installation damage and long-term chemical or biological degradation in both dry and wet environments. It can load high tensile strains applied in one direction and its open aperture structure interlocks with fill material to transfer the loading strains from soil to geogrids. Their primary characteristic is excellent creep performance with low strain and high tensile strength under constant load.

OUR PRODUCTS ARE WIDELY APPLIED TO

  • FILTRATION

  • DRAINAGE

  • SEPARATION

  • PROTECTION

  • BASE REINFORCEMENT

  • SEALING

  • EROSION CONTROL

  • MSE WALL REINFORCEMENT

  • WATERPROOFING

  • CONTAINMENT

NEWS

Check out our news to see what we're up to

June 20,2019

We are very honored to invite Beijing Head International Certification Co., Ltd to conduct ISO9001:2015 certification for our company.

We are very honored to invite Beijing Head International Certification Co., Ltd to conduct ISO9001:2015 certification for our company.
READ MORE
June 14,2019

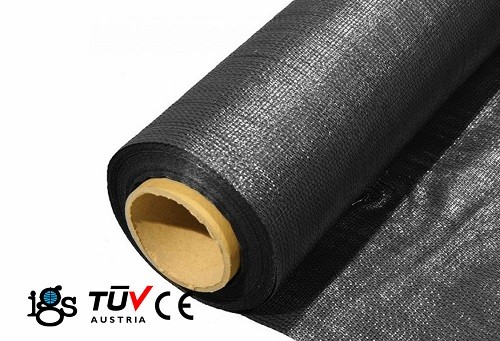

Earthmate BasalFab PP Woven Geotextiles have been awarded with CE Certificate of Conformity by TUV Austria
